#ITMA 2015
Loepfe presents quality control solutions at ITMA Milan
The efficiency of yarn testing is increased considerably by synchronized measurement of the most relevant yarn properties, like count, evenness, hairiness, and strength. In addition, all preparation products can be checked for mass evenness at the same time as the yarn. User-friendly and intuitive operation of the instrument increases the efficiency even further. LabMaster Top delivers value-added reports directly on the management’s desk.
The new yarn clearer generation YarnMaster Zenit+ utilizes state-of-the-art technology, fastest processors, and measuring technology. This extremely reliable tool safely detects even the finest yarn irregularities. Just one sensing head covers the range of yarn counts from Nec 2.4 to Nec 320. The YarnMaster Zenit+ allows even more precise yarn clearing then ever before and delivers a multi-layered evaluation of the measuring results. The new yarn clearers have additional features like nep cluster channel, off-standard bobbin detection, and improved foreign matter detection. They enable a 100 % online quality control in the spinning mill. Many of expensive and lengthy laboratory measurements are incorporated in the yarn clearer. The easy to service and easy to operate central unit LZE-V provides a clearly structured user interface. When needed, Loepfe technicians have the possibility to remote control the system, to check the status of the central unit and to update the software. The result is an increased reliability.

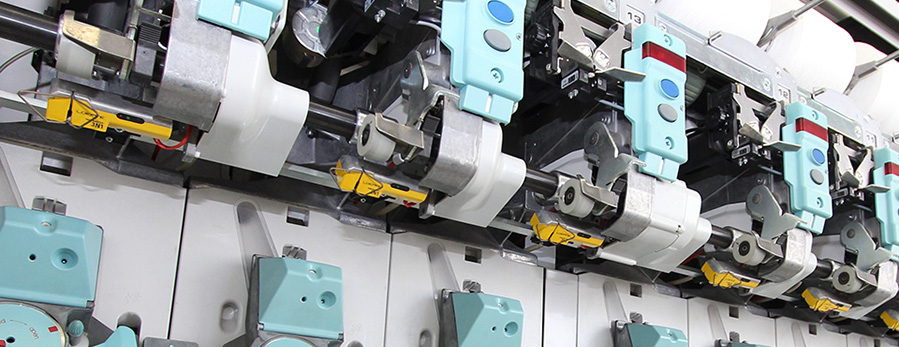

For open-end spinning applications Loepfe offers YarnMaster 3N1. The yarn clearer combines three sensors: an optical sensor for diameter measurement, a F-sensor for detection of foreign matter, and a P-sensor for detection of synthetic foreign matter like polypropylene. In addition YarnMaster 1N1 is available, which has one sensor for diameter measurement. Both yarn clearers can communicate with the machine control of the open-end spinning machine. The graphical user interface provides comfortable access to all functions and reports. The user activates the yarn clearing by setting classes within the clearer matrix using the touch screen. The length and deviation limits of the classes can be set individually within certain limits. Repetitive quality stops or longer faults can be blocked for particular rotors.
The YarnMaster 3N1/1N1 covers the range of yarn counts from Nec 3 to Nec 60 with maximum spinning speeds up to 400 m/min. The desired quality can be achieved with the maximum possible machine efficiency.

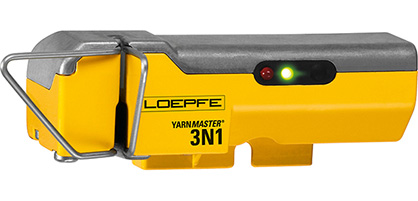

photo: (c)2015 YarnMaster 3N1 by Loepfe
For weaving mill applications the new WeftMaster Falcon-i optical yarn defects sensor contributes to the quality of the end product. The sensor is able to detect and eliminate smallest knots, fluff or even filamentation from the weft yarn. A wide range from 20 to 3,000 dtex and yarn speeds of up to 30 m/s is possible. The WeftMaster Falcon-i can work with monofilament or multifilament yarns and is insensitive for yarn color. It is also suitable for high performance yarns such as glass fiber, aramid, carbon etc.
The new online data management system MillMaster TOP is able to monitor and analyse the quality data from Loepfe yarn clearers. The modern software can collect, visualise and analyse quality data from up to 7,200 spindles in real-time. The data management system has a comprehensive functionality. The mill floor view gives an overview of all winding machines. Traffic light colours indicate the performance of the different machines or yarn production lots. Setting-up MillMaster TOP is very easy, because all connected machines are recognised automatically. With its modern client server architecture the system is the ideal solution for winding machines. The data is not only available on the server, but can also be displayed on a handheld device, e.g. a tablet computer. MillMaster TOP can be customized with various options, which are installed automatically via Loepfe´s cloud service.
