Company Profile
With about 3000 employees, Trützschler is one of the world's leading textile machinery manufacturer. Trützschler specialises in machines, installations and accessories for spinning preparation, the nonwovens and man-made fiber industry. The headquarters of the more than 125 year old company is located in Mönchengladbach, Germany. The subsidiaries Trützschler Nonwovens and Man-Made Fiber GmbH with two production sites, and Trützschler Card Clothing GmbH, are also located in Germany. Sites in India, China, Brazil, USA and Switzerland, as well as a number of service centres, provide customer proximity in the important textile processing areas.
Supply Program
Preparatory machinery for cotton spinning systems
Bale breakers, bale pluckers
Other preparatory machinery for cotton spinning systems
Waste reclamation lines, tearers
Lap winders
Drawing machines
Cards
Automatic feeding devices for carding machines
Foreign fibre/part separators
Blending machines
Blow room machines

Preparatory machinery for bast fibre spinning systems
Auto-feeders
Cards
Opening, cleaning and blending machines

Automatic doffing, piecing and transport systems for spinning preparation and spinning machines and man-made fibre production
Automatic transport systems between spinning preparatory and spinning machines

Accessories for spinning preparatory machinery
Other accessories for spinning preparatory machinery

Software and systems for data monitoring and processing (CAM, incl. controls)
Data monitoring and control systems for the spinning and winding industry
Company Products

Trützschler Card TC 15

After removal of the doors, all areas of the card are optimally accessible.

Success based on four pillars: Quality, productivity, flexibility and costs

15% more productivity
Since the introduction of the new card generation in 2011, continuous developments have allowed a further increase in productivity of many individual TC 15 elements by an additional 15% compared to the TC 11, thus achieving lowest carding costs.

Unique features of the TC 15 in the high-performance segment are:

  • Expansion of performance limits through T-MOVE and T-CON
  • Increased delivery speeds during can change
    (can diameter 1,000 mm and 1,200 mm)
  • Reduced air consumption
  • Smallest floor space in comparison to production
  • Lowest waste quantities

New web doffing
Today's technology allows delivery speeds well above 400 m/min in practice. For this reason, web doffing and sliver forming have been newly developed for speeds up to 500 m/min for the TC 15.

Quality at the highest level
"The length of the carding section determines the quality". Even though this has been common knowledge for some time, Trützschler is the only one with the longest carding section worldwide. For this reason, Trützschler cards have set the standard for quality for decades. The valuable raw material cotton is optimally used, which ultimately also contributes to an increase in productivity.

Trützschler IDF 2

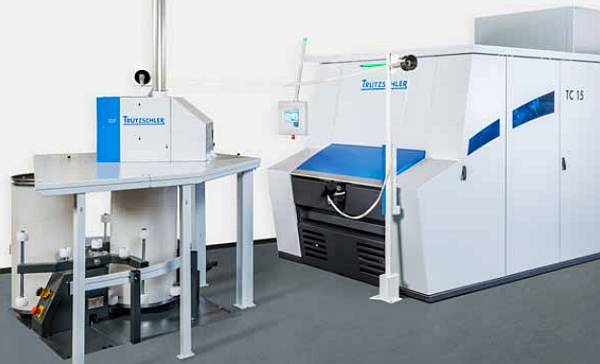

The Integrated Draw Frame IDF 2 with automatic can changer

The integrated draw frame: Concept with savings potential

The production-related and economic advantages that can be achieved with the Integrated Draw Frame IDF 2 are enormous:
  • requires less space,
  • requires less cans,
  • simplifies can transport,
  • lowers power consumption and
  • reduces personnel and operating costs.
Never before was a fully-fledged leveller draw frame more compact The use of a simple drafting system at the card was never a satisfying technological solution since only a fully-fledged levelling draw frame could guarantee a high degree of quality. Trützschler combined the compactness of a simple drafting system with the performance of a leveller draw frame.

The characteristics:
  • Maintenance-free, digitally controlled servo drives
  • High levelling dynamics through low mass inertia
  • Draft up to 200% (2-fold)
  • Delivery speeds up to 700 m/min
  • Controlled material storage for trouble-free can changing
  • Trützschler quality sensors in the feed and delivery area
  • Permanent monitoring of sliver quality

The drafting system is integrated in the production flow / sliver run and consists of reliable components of the Trützschler draw frame. This includes also technical highlights, like for instance the pneumatic load of the top rolls.

Trützschler T­SCAN TS-T5

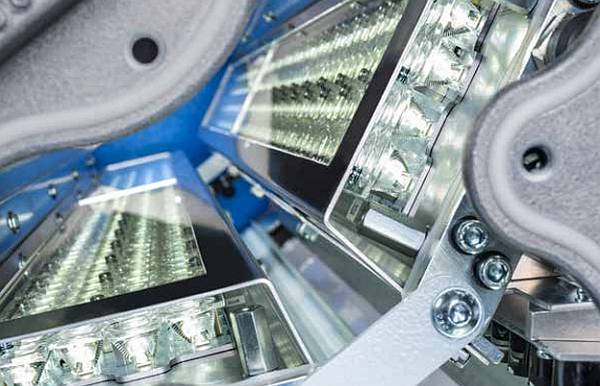

Over a thousand LEDs with assigned lenses ensure perfect illumination.

The new generation of foreign part separators

This machine presents the current high end of separation technology. The function, number of detection modules as well as lighting technology are unique in the market. Even problems concerning the detection of colourless and opaque, white PP have been eliminated.

The new T­SCAN TS-T5 presents a new generation and, compared to the SP-FPU, features two additional technologies:
  • F-Module - coloured/dark foreign parts
  • P-Module - transparent foreign parts
  • UV-Module - fluorescent foreign parts
  • G-Module - shiny foreign parts (NEW)
  • LED-lighting - small/tdin foreign parts (NEW)

Reliable detection and separation of foreign parts
The Trützschler T-SCAN TS-T5 is the most effective system for the separation of foreign parts. Five different detection technologies tailored to the requirements of foreign part separators are combined in one separator. Depending on type of contamination and further processing, the established Foreign Part Separator SP-FPU is also a good choice.
